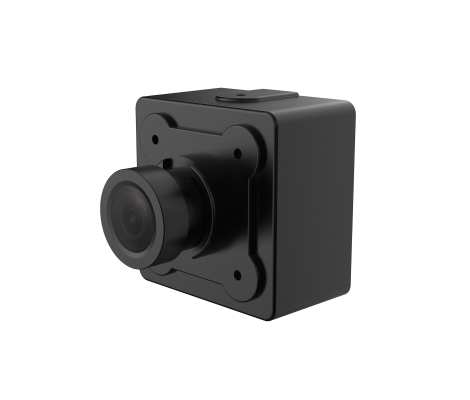

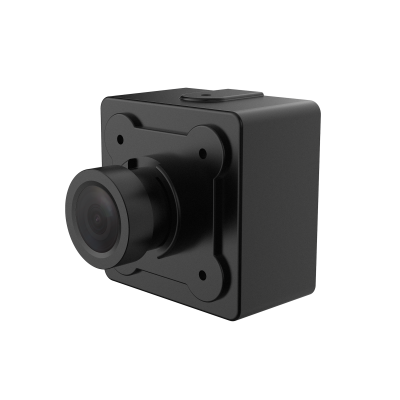

IPC-HUM8231-L5

Camera

Image Sensor

1/2.8” 2Megapixel progressive scan CMOS

Scanning System

Progressive

Effective Pixels

1920(H)x1080(V)

Minimum Illumination

0.02Lux/F2.1 (Color,1/3s,30IRE)

0.1Lux/F2.1 (Color,1/30s,30IRE)

0.01Lux/F2.1 (B/W,1/3s,30IRE)

0.05Lux/F2.1 (B/W,1/30s,30IRE)

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8mm

Max. Aperture

F2.1

Angle of View

H:111° ,V:56°

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

0.6m

DORI Distance

Detect

Observe

Recognize

Identify

44m(144ft)

18m(59ft)

9m(29ft)

4m(13ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

N/A

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

N/A

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

30mm×31mm×32.4mm(1.18”×1.22”×1.28”)

Net Weight

0.40Kg (0.88lb)

Gross Weight

0.47Kg (1.03lb)
