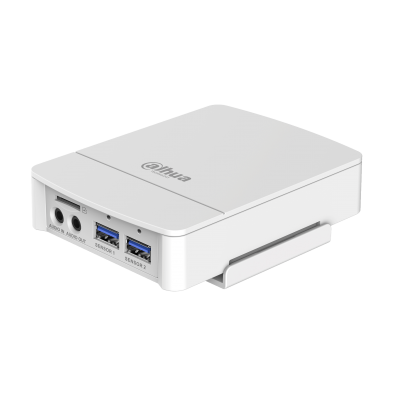

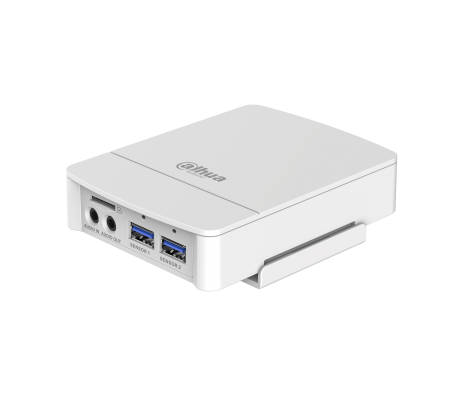

IPC-HUM8231-E2

Camera

RAM/ROM

512MB/32MB

S/N Ratio

More than 50dB

Intelligence

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection

Video (Working Together with Lens Unit)

Compression

H.265/H.264

Streaming Capability

2 Streams

Resolution

1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480)/ VGA(640x480)/ CIF(352×288/342x240)

Frame Rate

Main Stream:

CH1: 1080P(1~25/30fps)

CH2: 1080P(1~25/30fps)

Sub Stream:

CH1: CIF (1 ~ 25/30fps)

CH2: CIF (1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24Kbps~ 9472Kbps

H.265: 14Kbps~ 5632Kbps

Day/Night

Electronic

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zones, Rectangle)

Region of Interest

Off / On (4 Zones)

Electronic Image Stabilization (EIS)

N/A

Smart IR

N/A

Defog

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Areas, Rectangle)

Audio

Compression

G.711a/ G.711Mu/ AAC/ G.726

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;

DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;

Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

N/A

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

1/1 channel In/Out

RS232

1 port

Alarm

2 channel In: 5mA 5VDC

2 channel Out: 1A 30VDC / 0.5A 50VAC

Electrical

Power Supply

DC12V, PoE(802.3af)(Class 0)

Power Consumption

<7W (working together with 2 lens units)

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

N/A

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

110.0mm×82.7mm×24.0mm (4.33”×3.26”×0.95”)

Net Weight

0.21Kg (0.46lb)

Gross Weight

0.30Kg (0.66lb)
