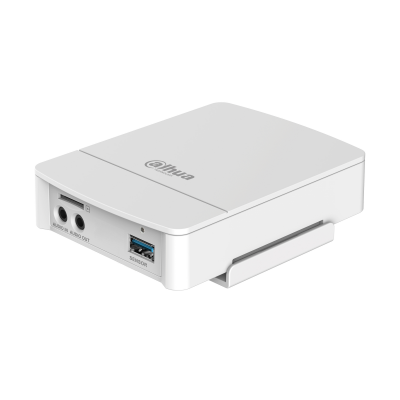

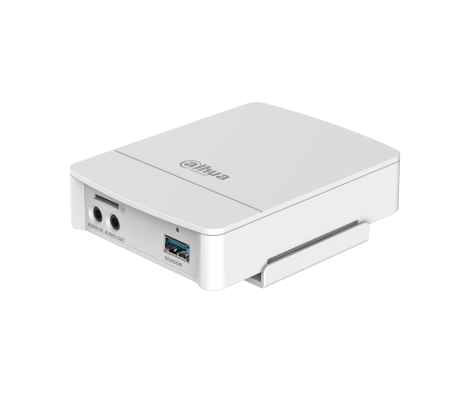

IPC-HUM8231-E1

Camera

RAM/ROM

512MB/32MB

S/N Ratio

More than 50dB

Intelligence

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection

Video (working together with lens unit)

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480)/ VGA(640x480)/ CIF(352×288/342x240)

Frame Rate

Main Stream: 1080P(1~50/60fps)

Sub Stream: D1 (1 ~ 25/30fps)

Third Stream: 1080P(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24Kbps~ 9472Kbps

H.265: 14Kbps~ 5632Kbps

Day/Night

Electronic

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zones, Rectangle)

Region of Interest

Off / On (4 Zones)

Electronic Image Stabilization (EIS)

N/A

Smart IR

N/A

Defog

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Areas, Rectangle)

Audio

Compression

G.711a/ G.711Mu/ AAC/ G.726

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;

DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;

Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, Easy4ip

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

1/1 channel In/Out

RS232

1 port

Alarm

2 channel In: 5mA 5VDC
2 channel Out: 1A 30VDC / 0.5A 50VAC

Electrical

Power Supply

DC12V, PoE(802.3af)(Class 0)

Power Consumption

<6W (working together with lens unit)

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

N/A

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

110.0mm×82.7mm×24.0mm (4.33”×3.26”×0.95”)

Net Weight

0.21Kg (0.46lb)

Gross Weight

0.30Kg (0.66lb)
